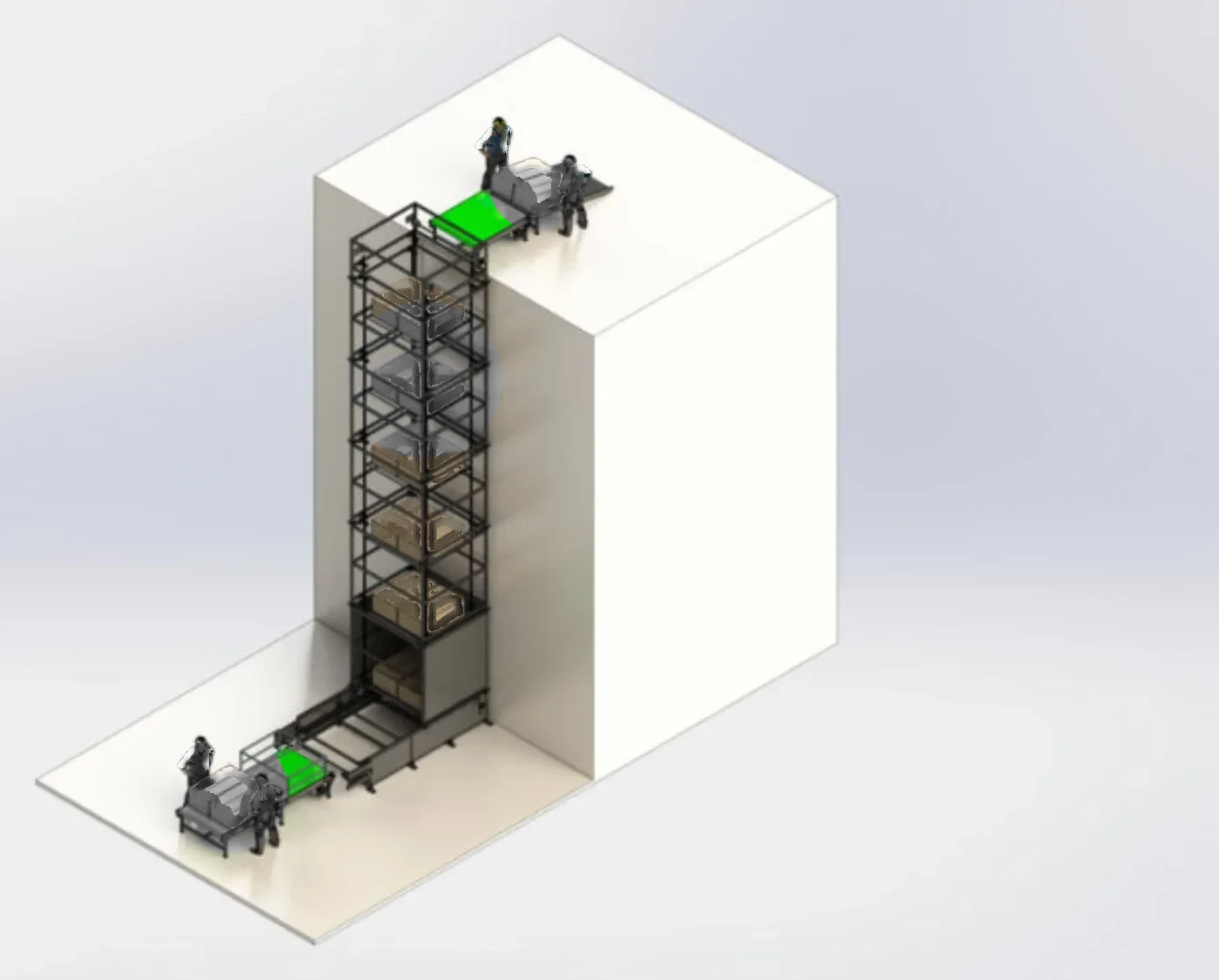

A Vertical Lifting Conveyor mechanically elevates or lowers materials between different levels within a production or packaging line. It provides precise, space-saving vertical transport of products across multiple elevation levels, integrating touch-screen controls, quality inspection, and sensor-based monitoring. The system reduces manual handling and labour while improving throughput, safety, and traceability along the line.
What is built into it
- 01
Precise vertical (bi-directional) transport between elevation levels
- 02
Touch-screen controls for easy operation
- 03
Sensor technology for detection and monitoring
- 04
Quality inspection and monitoring integration
- 05
Alarm notifications for fault and status alerts
- 06
Enhanced safety features
- 07
Consistency and accuracy in material handling
- 08
Increased line/labeling speed and improved appearance and traceability
- 09
Labour savings by reducing manual handling
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Height
- 3-10 m (Customizable)
- Width
- 300-1000 mm
- MOC
- SS 304 / MS
- Surface Finish
- SS Matt Finish / Bead Blast or MS Painting & Powder Coating
- Speed
- 3-10 m/min
- Voltage
- 220 V / 415 V
- Motor Position
- Right / Left
- Drive Type
- Direct / Chain / Belt
- Direction
- Bi-Directional
- Resting
- Levelling Pads / Wheel
Where it runs
- Food products (loose, packaged, or bulk)
- Capsules, powders, or packaged medicines
- Boxes, grains, bottles, blister packs, tablets, and trays
- Food and Beverages
- Pharma
- Cosmetics
- Packaging
- E-commerce
- Warehousing
- Electronics
- Automobile
- Assembly Lines
- Manufacturing
- Airports
- Waste Management
