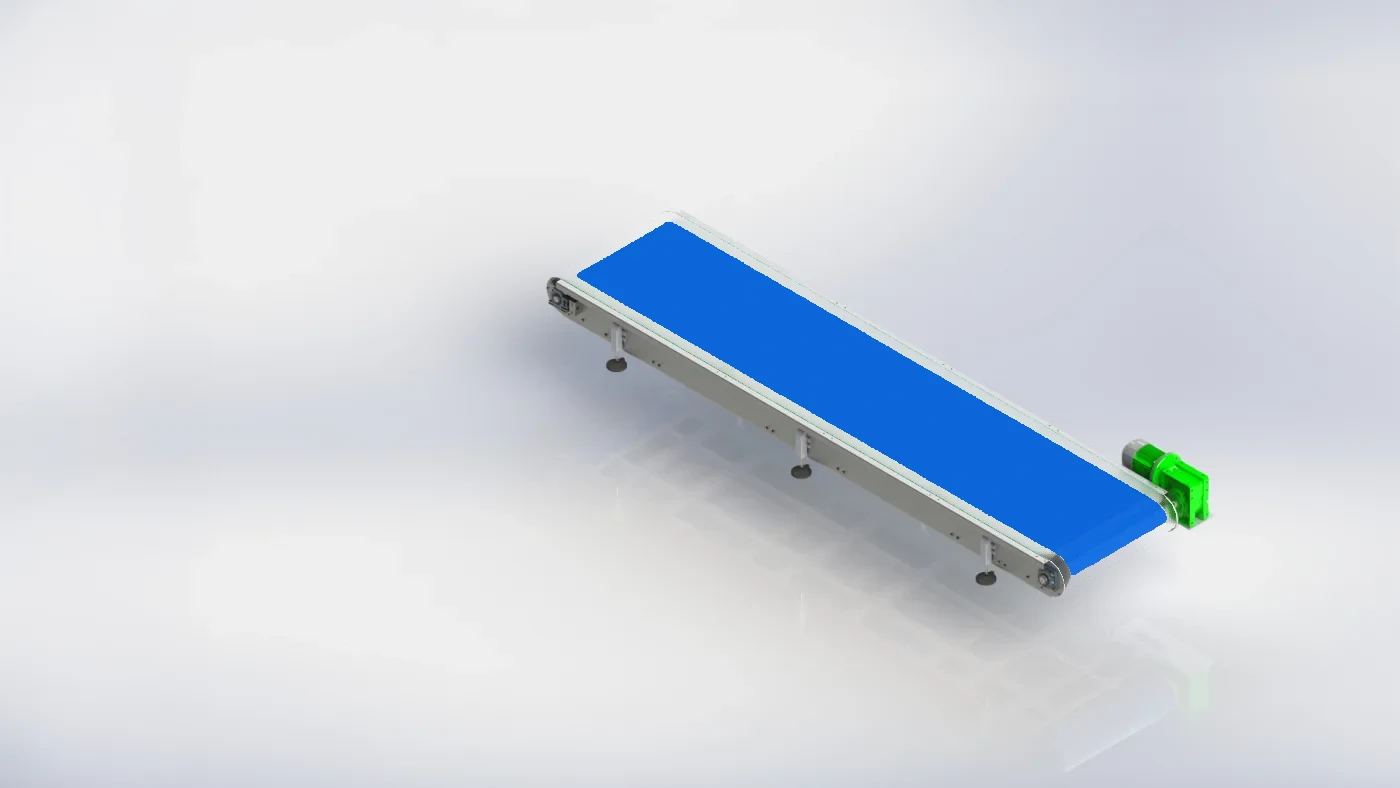

A flexible and durable material-handling solution designed for efficient transport of products across production stages. It uses interlocking plastic belt segments that allow straightforward customization, maintenance, and sanitation, making it well suited to food, pharmaceutical, and packaging sectors. The system supports straight, curved, and inclined configurations and handles varying payload weights depending on belt type and frame construction. (Source: manufacturer product page.)
What is built into it
- 01
Modular, interlocking design enabling straightforward repairs
- 02
Sections can be individually replaced or reconfigured
- 03
Automatic belt alignment through sprocket engagement
- 04
Easily adapted for straight runs, curves, and inclines/declines
- 05
Hygienic construction with minimal alignment issues
- 06
No-slippage belt characteristic
- 07
Lighter than metal or chain alternatives in many scenarios
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 0.5-10 meters (customizable)
- Width
- 65-1200 mm
- Height
- 700-900 mm (customizable)
- Materials of construction
- Stainless Steel 304, MS (mild steel), Aluminum
- Belt types
- flat top, perforated, cleated, friction top, radius/curved
- Speed
- 5-30 m/min
- Motor positioning options
- Right, Left, Center
- Power supply
- Single/3-phase, 50 Hz
- Voltage
- 220V or 415V
Where it runs
- Moving medicines, bottles, and blister packs in cleanrooms
- Transporting boxes, trays, and pouches through production stages
- Handling warehouse inventory
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharma
- Warehousing
- Waste Management
