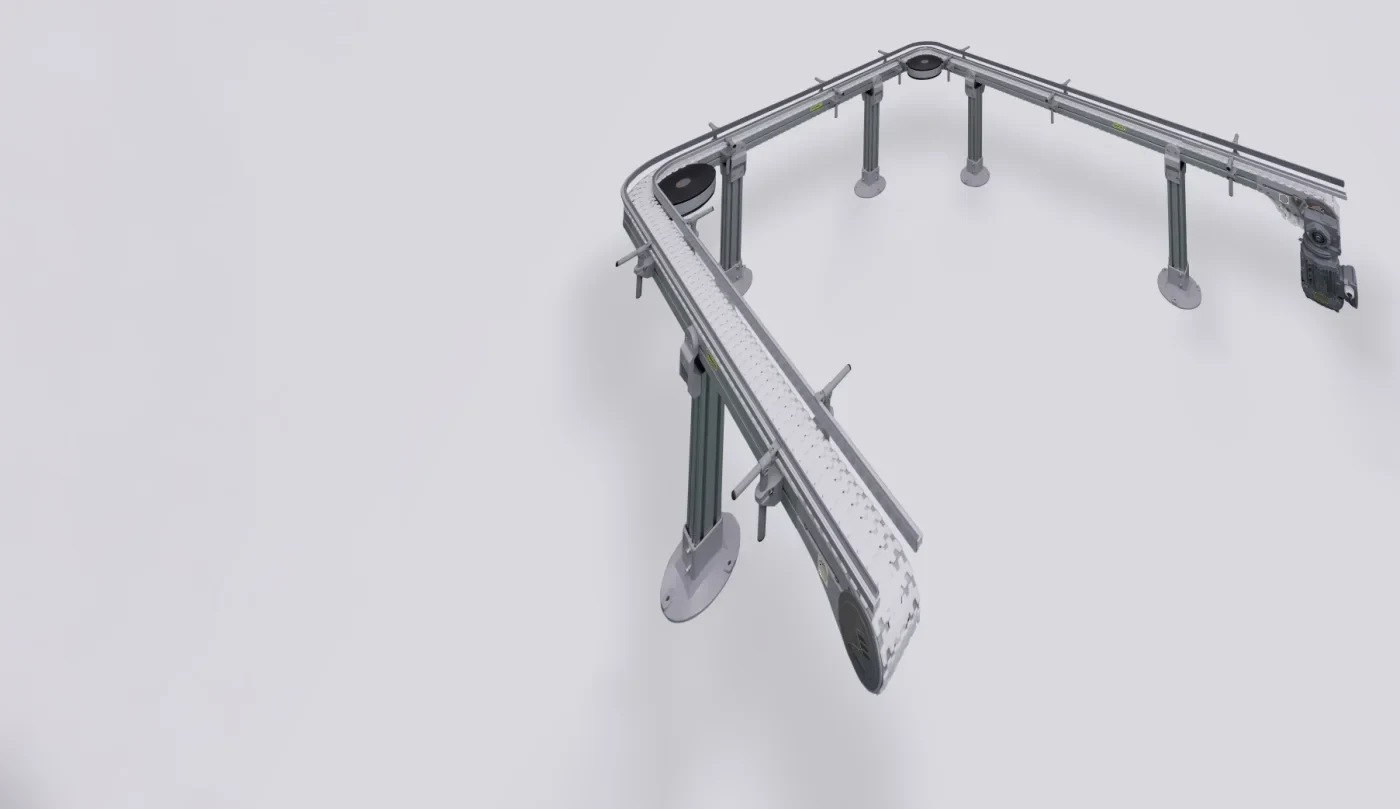

The C-Type Modular Conveyor is a specialized conveyor system designed for efficient product transfer with smooth vertical and horizontal movement. Its distinctive C-shaped belt design enables gentle product handling with minimal damage, making it suitable for applications with precise orientation requirements. Built with a modular belt and a hygienic, low-maintenance construction, it offers durability, long service life, and adaptability to a wide range of production environments.
What is built into it
- 01
Versatile application across multiple industries and production layouts
- 02
C-shaped belt design for smooth vertical and horizontal product movement
- 03
Enhanced efficiency for high-throughput product transfer
- 04
Low maintenance requirements
- 05
Long service life and durable construction
- 06
Hygienic design suitable for food, pharma, and cosmetics
- 07
Space optimization for compact production floors
- 08
Customizable options (length, height, drive type, motor position, supports)
- 09
Bi-directional operation
- 10
Gentle product handling with minimal damage
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 1-50 meters (customizable)
- Width
- 65 / 85 / 105 mm
- Height
- 700-900 mm (customizable)
- Material of construction
- SS 304 or Aluminum
- Belt type
- Modular belt
- Speed
- 5-40 m/min (variable or fixed)
- Power supply
- Single or 3-phase, 50 Hz
- Voltage
- 220V or 415V
- Drive type
- Direct, Chain, or Belt drive
- Direction
- Bi-directional
- Motor position
- Right or Left
- Support
- Foot Rest or Tripod
Where it runs
- Food & Beverage
- Pharmaceuticals
- Cosmetics
- Packaging
- Electronics
- Assembly Lines
- Airports
- Automobiles
- E-commerce
- Manufacturing
- Warehousing
- Waste Management
