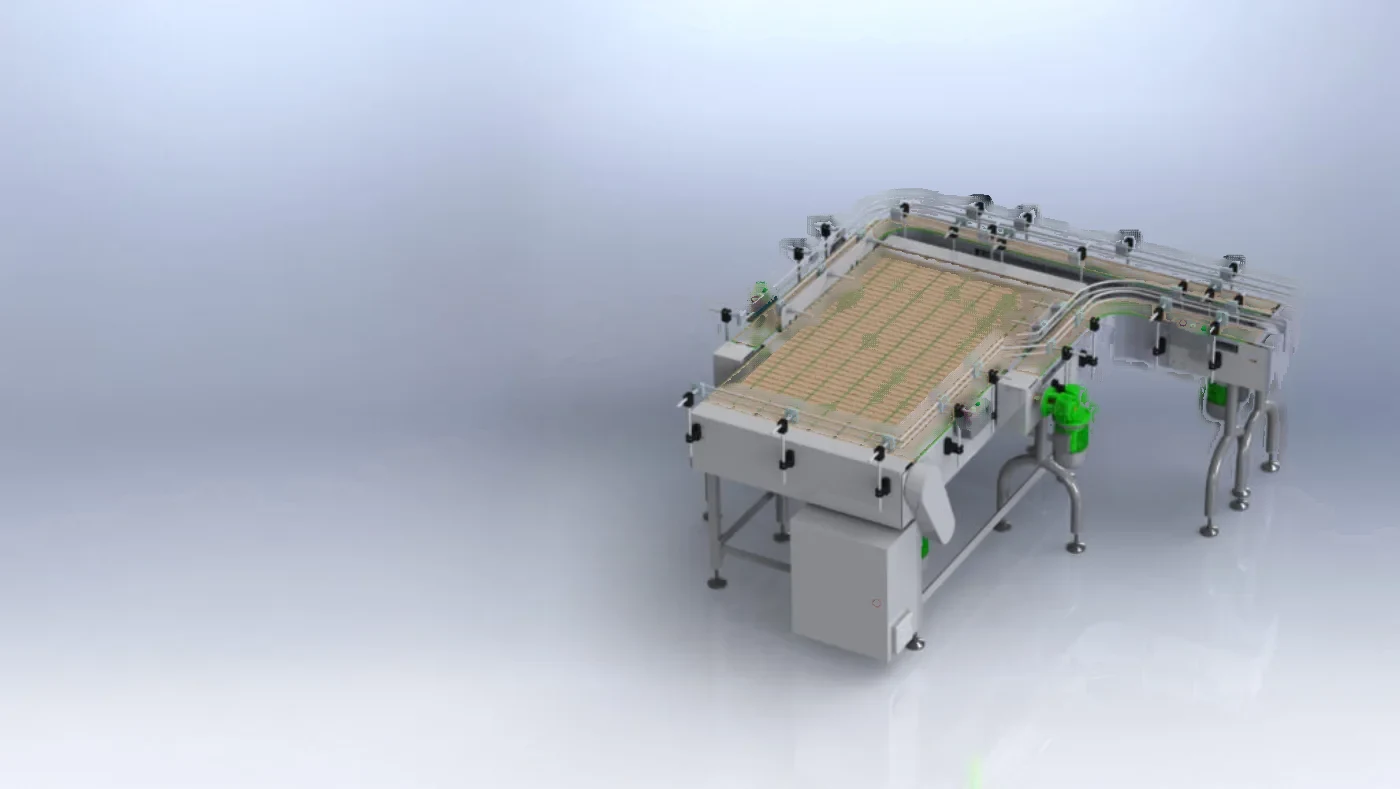

The Accumulation Conveyor is designed to temporarily hold or queue products along a conveyor line without causing product damage or line pressure. It facilitates controlled spacing and flow to prevent bottlenecks in automated production systems, keeping product movement smooth and pressure-free. Integrated sensor technology and variable frequency drive control allow the line to accumulate and release products on demand.
What is built into it
- 01
Increased storage capacity for queuing products along the line
- 02
Production line balancing with Variable Frequency Drive (VFD)
- 03
Sensor technology integration for controlled accumulation and release
- 04
Compact, safe, and reliable design
- 05
Compatible with diverters and merge units
- 06
Bi-directional operation capability
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 750-6000 mm (customizable)
- Width
- 300-1200 mm
- Height
- 700-900 mm
- MOC
- SS 304 / 316
- Speed
- 0-15 m/min
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt Drive
- Belt Type
- Modular / Slat Chain
- Motor Position
- Right / Left
- Surface Finish
- Matt Finish / Bead Blast
- Mounting
- Levelling Pads / Wheel
Where it runs
- Warehouse box handling
- Bottle capping
- Food grain transport
- Personal care items
- Sheet metal parts
- Vaccine bottles
- Blister packs
- Tablets/capsules
- Biscuits and trays
- Airports
- Assembly lines
- Automotive
- Cosmetics
- E-commerce
- Electronics
- Food & Beverages
- Manufacturing
- Packaging
- Pharmaceuticals
- Warehousing
- Waste management
