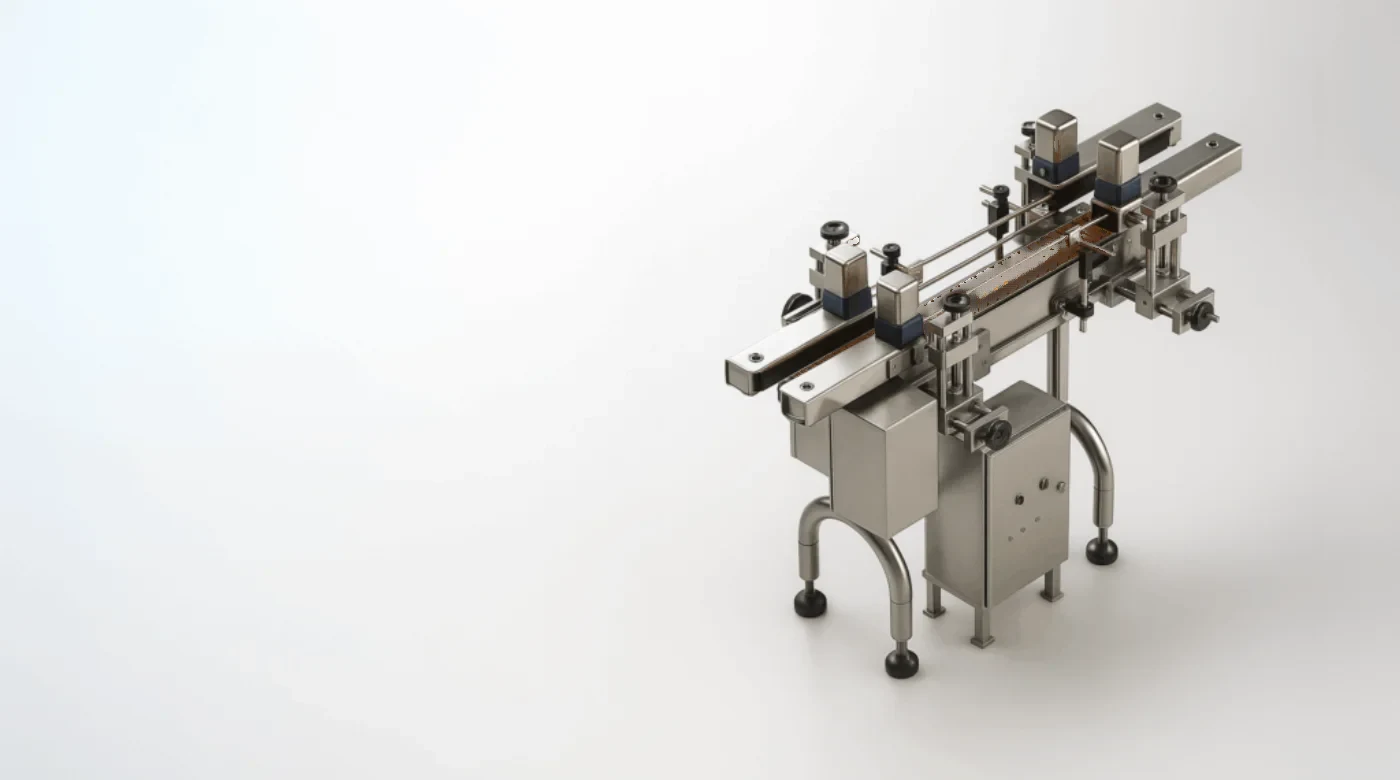

The Massage Conveyor is a dual-belt conveying system designed to gently compress, align, and condition products during transfer between processing stages. It uses parallel upper and lower belts to sandwich products, ensuring smooth, damage-free handling while enhancing product presentation and flow. Soft rubber or PU rollers gently press both sides of the product to eliminate air gaps and prepare items for downstream equipment such as slicers, portioners, or packaging machines.
What is built into it
- 01
Height-adjustable conveyor bed
- 02
Handles multiple packaging formats
- 03
Adjustable side guides
- 04
Soft rubber or PU rollers gently press both sides of the product to eliminate air gaps
- 05
Customizable for varied applications
- 06
Improves product quality and increases packaging speed
- 07
Easy to clean, sanitize, and maintain with easy access
- 08
Reduces manual intervention for settling or repositioning filled products
- 09
Easily integrates with filling, capping, labeling, or inspection systems
- 10
Bi-directional operation
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 300-800 mm / Customized
- Width
- 35-200 mm
- Height
- 700-900 mm / Customized
- MOC
- SS 304 / 316
- Surface Finish
- SS Matt Finish / Bead Blast
- Belt Material
- PU Rubber
- Belt Width
- 35-200 mm (based on product size)
- Speed
- 5-40 m/min
- Motor Position
- Top
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Belt Drive
- Direction
- Bi-Directional
- Resting
- Levelling Pads / Wheel
Where it runs
- Stabilizing bottles, pouches, or cartons before labeling, capping, or coding
- Food and Beverages
- Pharma
- Packaging
- Electronics
- Cosmetics
- Manufacturing and Assembly Lines
- Automobile
- Warehousing and E-commerce
- Airports
- Waste Management
