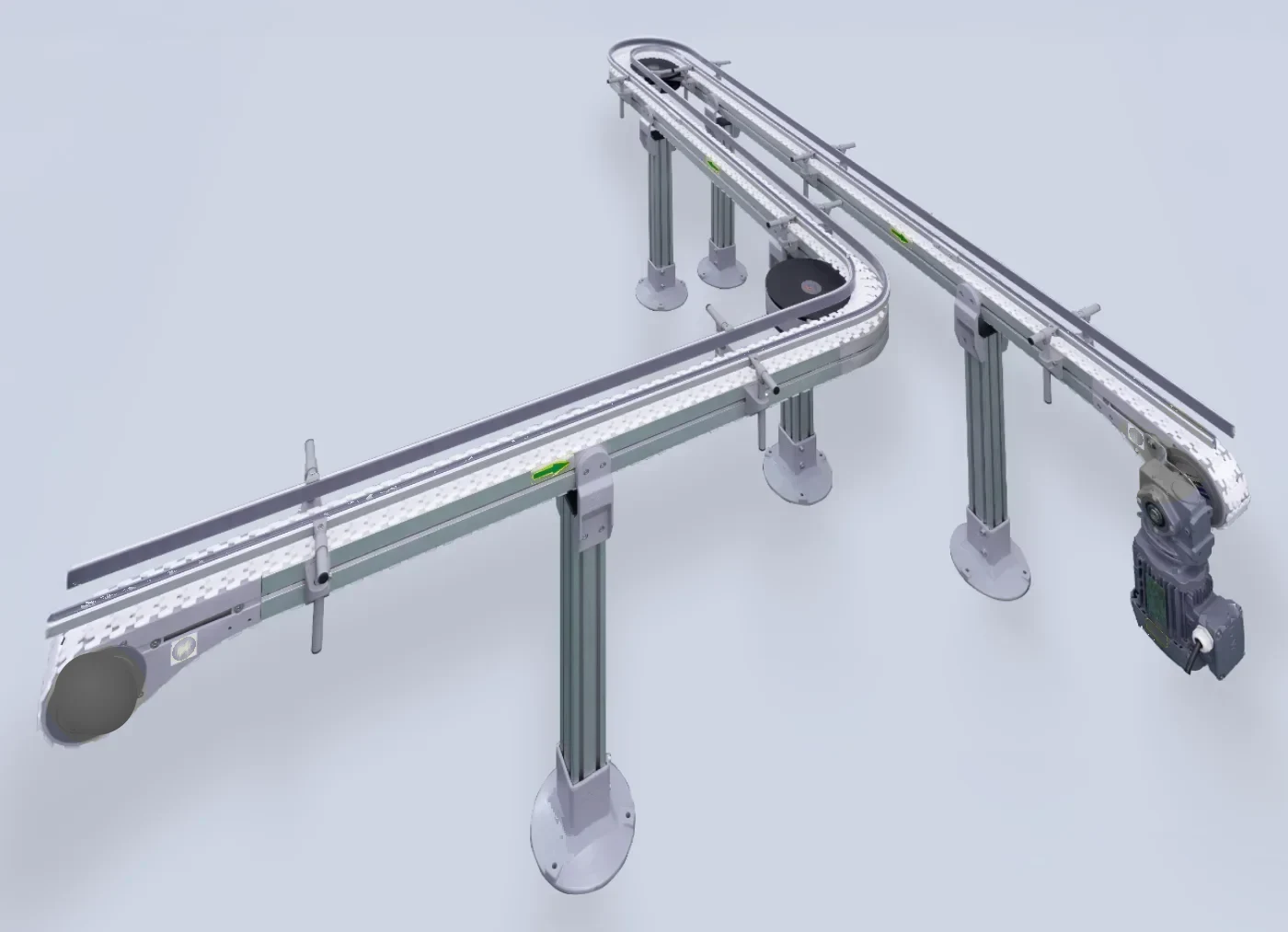

The U Type Modular Conveyor is a specialized conveyor system engineered by KFlexiTrack to move products through 180-degree turns within compact production environments. It uses a durable U-shaped modular plastic belt to ensure smooth, stable, and gentle handling of products, minimizing spillage and damage while optimizing floor space. The corrosion-resistant stainless steel or aluminum frame and hygienic design make it well suited to regulated industries, and its customizable, bi-directional configuration adapts to a wide range of production layouts.
What is built into it
- 01
U-shaped modular belt for smooth 180-degree product turns
- 02
Versatile application across multiple industries
- 03
Enhanced operational efficiency
- 04
Low maintenance requirements
- 05
Extended service life with durable modular plastic belt
- 06
Corrosion-resistant stainless steel or aluminum frame
- 07
Hygienic design suitable for regulated industries
- 08
Space optimization within compact production areas
- 09
Customizable configuration options
- 10
Simple assembly and quick belt replacement
- 11
High load-carrying capacity
- 12
Quiet and stable operation
- 13
Bi-directional operation capability
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 1-50 meters (customizable)
- Width
- 65 / 85 / 105 mm
- Height
- 700-900 mm (customizable)
- Material of Construction (MOC)
- Stainless Steel 304 or Aluminum
- Surface finish
- Hard anodized profiles with Munshell gray matt finish, or bead blasted
- Speed range
- 5-40 m/min (variable or fixed)
- Direction
- Bi-directional capable
- Drive type
- Direct, Chain, or Belt drive options
- Power supply
- Single-phase or 3-phase, 50 Hz
- Voltage
- 220V or 415V
- Motor position
- Right or left configuration
- Support options
- Foot rest or tripod mounting
Where it runs
- Food processing
- Packaging
- Pharmaceuticals
- Assembly operations / assembly lines
- Material handling
- Airports
- Automobile manufacturing
- Cosmetics
- E-commerce
- Electronics
- Food and beverages
- General manufacturing
- Warehousing
- Waste management
