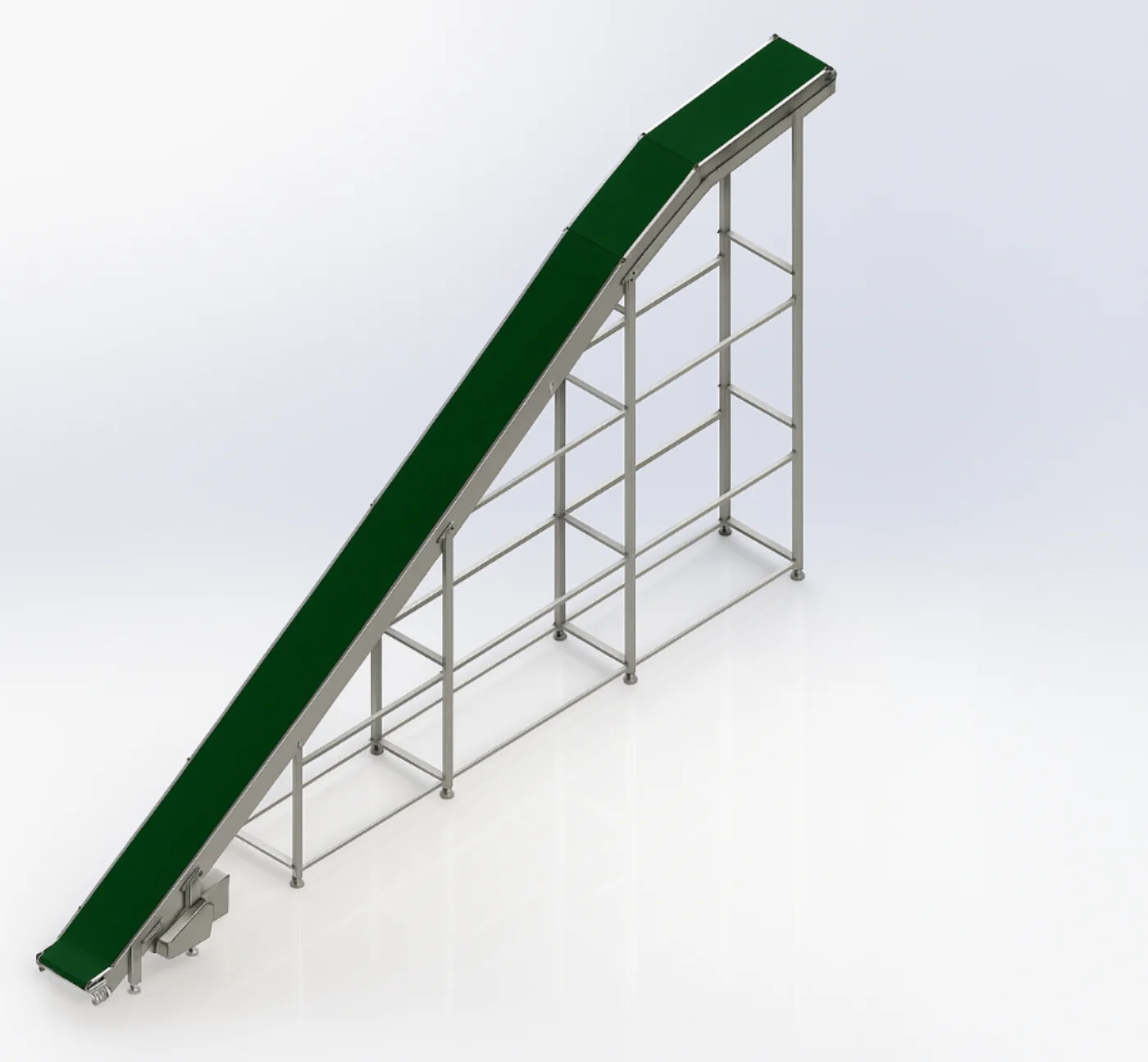

KFlexiTrack's Inclined Flat Belt Conveyor efficiently transports materials between different facility heights. Built with robust, customizable construction and adjustable incline angles, it moves items ranging from small components to bulk materials from lower to higher elevations. Well-suited for packaging, manufacturing, warehousing, and distribution operations, the system can be fitted with optional cleats and side guards to prevent spillage and enhance product stability during elevation, while making effective use of vertical workspace in tight areas.
What is built into it
- 01
Enables material movement from lower to higher elevations
- 02
Prevents spillage and product fall-off during transport
- 03
Optimized for tight spaces requiring vertical lifting over short distances
- 04
Smooth transfer capability at steep angles
- 05
Effective utilization of vertical workspace
- 06
Reduces manual labor and ergonomic risks
- 07
Increases throughput and productivity
- 08
Adaptable incline angles and belt types (cleated, rough-top, modular plastic)
- 09
Bi-directional operation with configurable motor position (right, left, or center)
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- Customized
- Width
- 65-1200 mm
- Height
- Customized
- Inclination Angles
- 7.5 / 15 / 30 / 45 degrees / Customized
- Materials of Construction
- SS 304 / MS / Aluminium
- Surface Finish
- Stainless steel - Matt or Bead Blast; Mild steel - Painting or Powder Coating
- Belt Options
- PVC, PU, Cleated, Rough-Top, Modular
- Speed Range
- 5-35 m/min
- Motor Position
- Right, Left, or Center
- Power Supply
- Single Phase or 3 Phase, 50 Hz
- Voltage
- 220V or 415V
- Drive Type
- Direct, Chain, or Belt Drive
- Direction
- Bi-directional
- Mounting
- Levelling pads or wheels
Where it runs
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharmaceuticals
- Warehousing
- Waste Management
