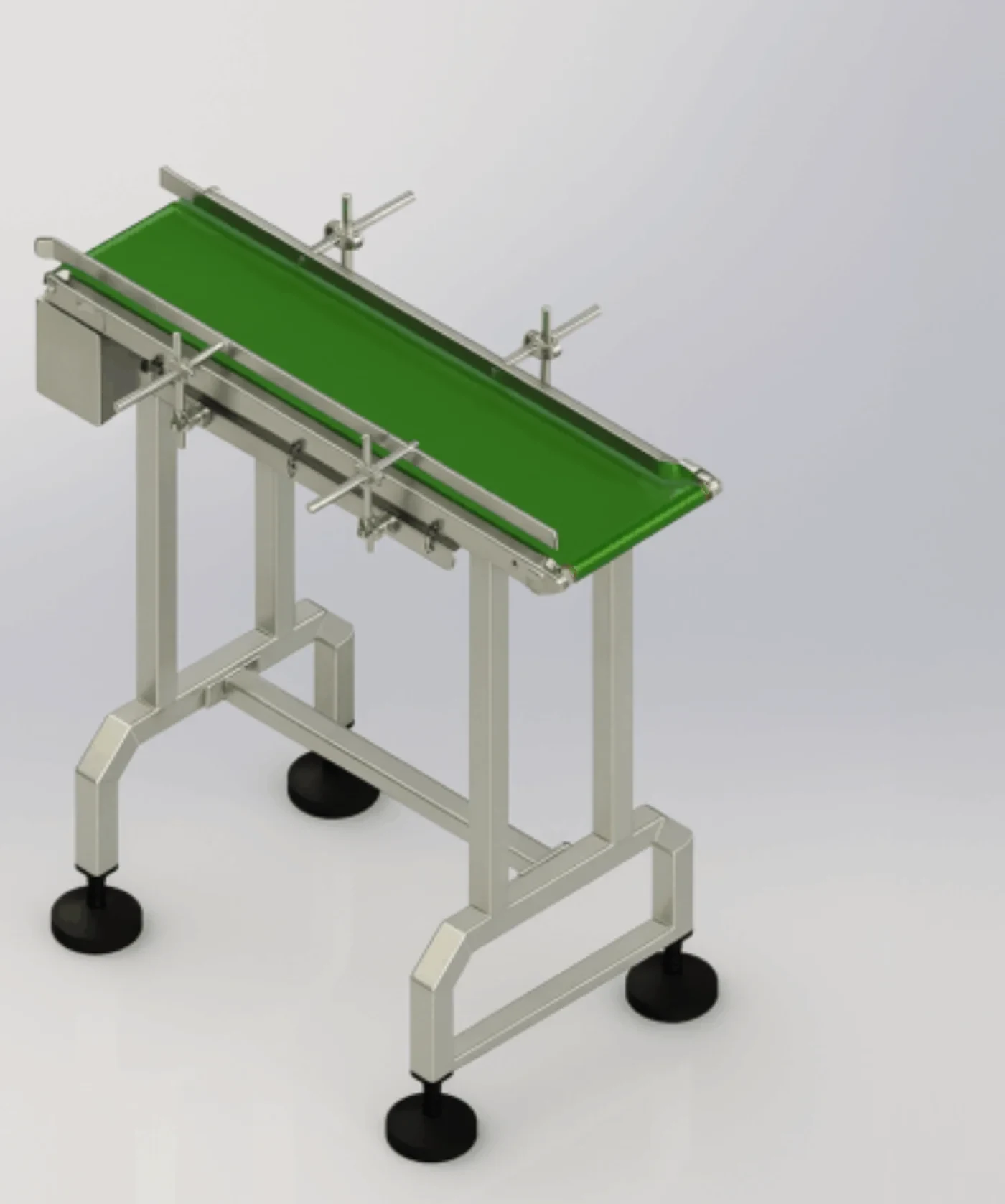

The Knife Edge Flat Belt Conveyor features a minimal-diameter end roller that enables smooth and precise transfer of small or lightweight products between two conveyors or from a conveyor to another process. Its knife-edge design minimizes the transfer gap, allowing sensitive items to pass seamlessly from one line to the next without falling or jamming. It is widely used across pharmaceutical, food processing, cosmetics, electronics, and packaging industries.
What is built into it
- 01
Minimal transfer gap design for seamless product handoff between conveyors
- 02
Adjustable speed via VFD (Variable Frequency Drive)
- 03
Adjustable side guides for accurate product alignment
- 04
Quick-release belt mechanism (optional)
- 05
Low noise operation
- 06
Compact design ideal for machine-to-machine transfer
- 07
Bi-directional operation
- 08
Food-grade PU belt with SS 304 construction
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 300-800 mm (Customized available)
- Width
- 150-300 mm
- Height
- 700-900 mm (Customized available)
- Knife Edge Diameter
- 12-20 mm
- MOC (Material of Construction)
- SS 304
- Surface Finish
- SS Matt Finish / Bead Blast
- Belt Material
- PU
- Speed
- 5-50 m/min
- Motor Position
- Right / Left
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt Drive
- Direction
- Bi-Directional
Where it runs
- Pharmaceutical - vials, blister packs, tablets, capsules, vaccine containers
- Food & Beverage - food items and small packaged goods
- Cosmetics
- Electronics
- Packaging
- Warehousing & logistics
- Sheet metal / small parts transfer
