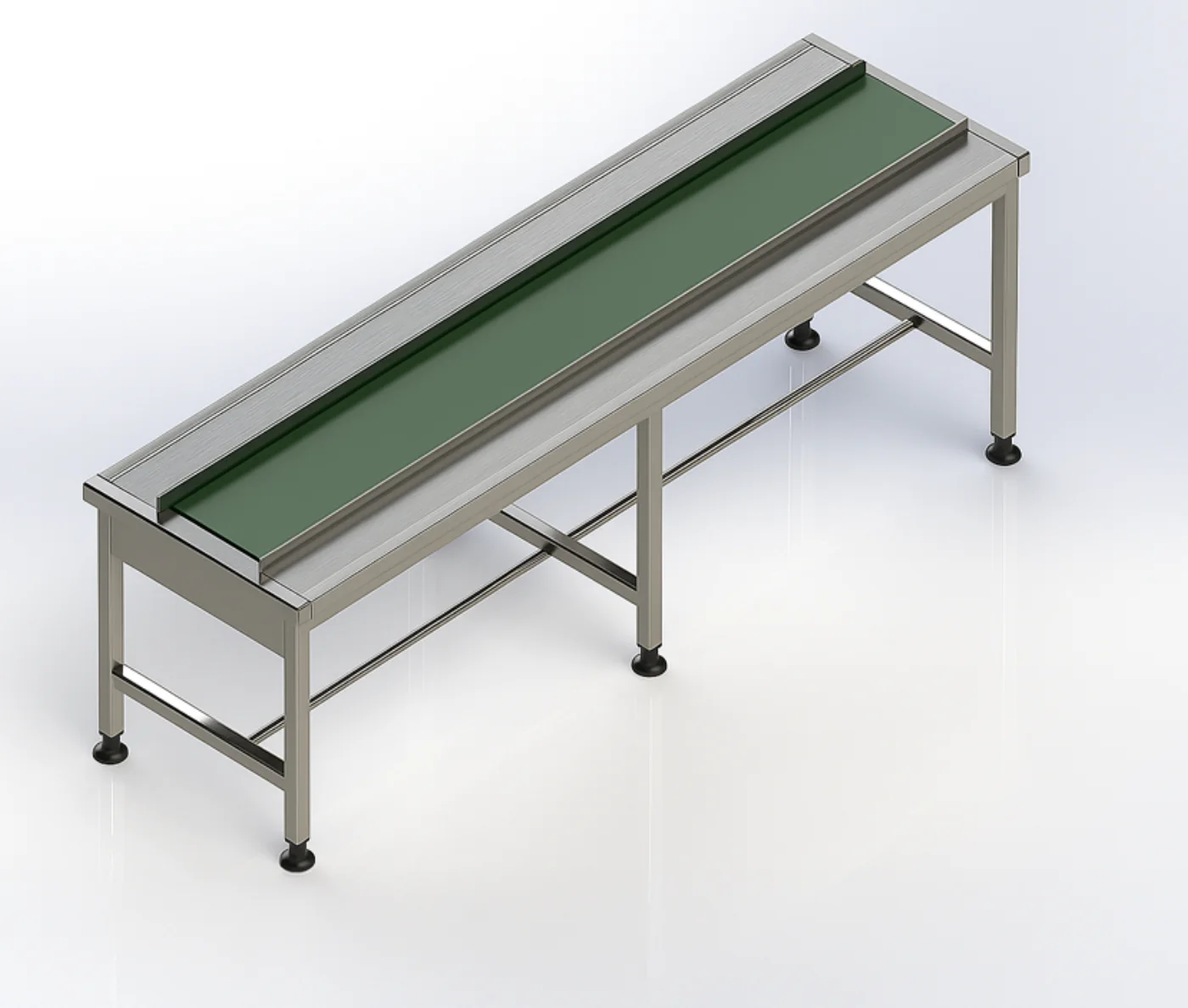

A packing conveyor uses a flat belt mounted on a sturdy frame to move products for manual or automatic packing operations. It is commonly placed at the end of production lines to improve packing speed and reduce manual handling. Widely used across pharmaceuticals, food, cosmetics, and consumer goods sectors, it offers hygienic, food/pharma-grade construction with optional integrated side packing tables.
What is built into it
- 01
Custom length and width configurations
- 02
Smooth, low-noise operation
- 03
Continuous product flow
- 04
Minimal maintenance requirements
- 05
Hygienic food/pharma grade construction
- 06
Integrated side packing tables
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 1.5-9 m / Customized
- Belt Width
- 200-500 mm
- Height
- 700-900 mm / Customized
- MOC (Material)
- SS 304 / MS
- Surface Finish
- SS Matt / Bead Blast or MS Painting & Powder Coating
- Belt Material
- PVC / PU
- Speed
- 3-10 m/min
- Motor Position
- Right / Left
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt
- Side Tables
- 250 / 300 / 400 mm
Where it runs
- Pharmaceuticals
- Food and beverages
- Cosmetics
- Packaging
- Manufacturing
- Electronics
- Automobile
- Warehousing
- E-commerce
- Airports
- Assembly lines
- Waste management
- Handling products such as bottles, jars, pouches, snacks, ready meals, tablets, syrups, medical kits, and cosmetics
