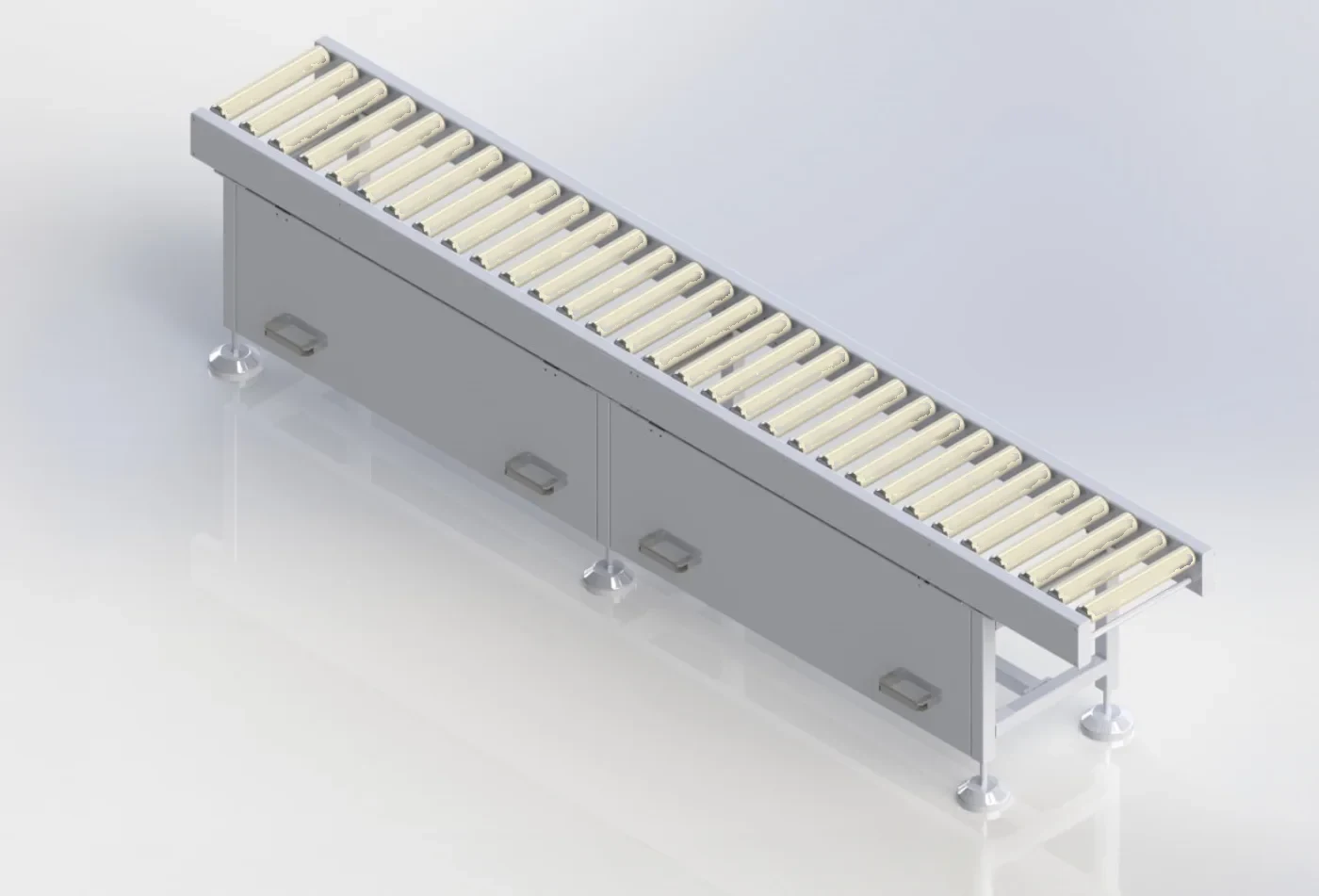

The Gravity Roller Conveyor is a simple and cost-effective material handling solution that uses gravity or manual push to move materials, requiring no power source. It is ideal for light to medium load applications across packaging, warehousing, and assembly environments. Its modular design offers smooth, quiet operation while saving floor space and minimizing maintenance.
What is built into it
- 01
No power source required — driven by gravity or manual push
- 02
Simple design architecture
- 03
Handles light to medium loads effectively
- 04
Modular and flexible layout options
- 05
Smooth, quiet operation
- 06
Space-saving design
- 07
Easy installation with low maintenance demands
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- Customized
- Width
- 300-1500 mm
- Height
- 700-900 mm / Customized
- MOC
- SS 304 / MS
- Surface Finish
- SS Matt Finish / Bead Blast; MS Painting & Powder Coating
- Resting
- Levelling Pads / Wheel
- Drive
- Non-powered (gravity / manual push — no motor, voltage, or speed rating)
Where it runs
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharma
- Warehousing
- Waste Management
- Material transportation along production lines
- Moving boxed goods for storage or shipping
- Handling boxes, bottles, food grains, personal care items, sheet metal, vaccine bottles, blister packs, nuts, snacks, tablets, capsules, biscuits, and trays
