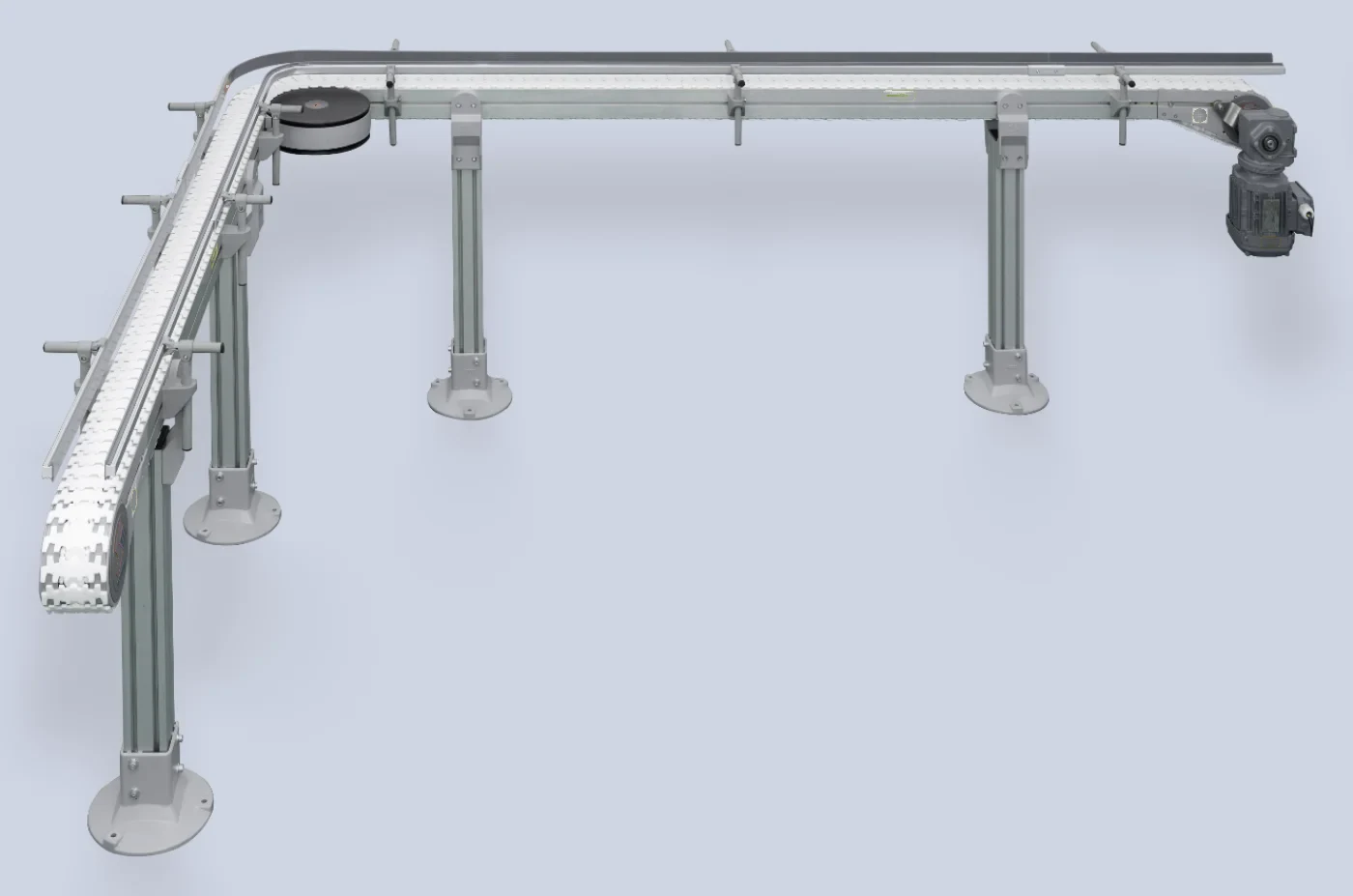

The L Type FlexiTrack Modular Conveyor is engineered to efficiently transfer products around 90-degree bends while maintaining a smooth, continuous flow. It uses a durable modular plastic belt on a corrosion-resistant frame, balancing high load-carrying capacity with minimal upkeep. The L-shaped layout makes it ideal for production environments that need directional changes and space efficiency, letting a single line change direction without manual transfer or additional handling. Its modular design supports quick belt replacement, hygienic operation, and customizable configurations for a wide range of industries.
What is built into it
- 01
Transfers products smoothly around 90-degree bends for directional changes
- 02
Durable modular plastic belt construction
- 03
Corrosion-resistant frame (Stainless Steel 304 or Aluminum)
- 04
Low maintenance with simple assembly and quick belt replacement
- 05
High load-carrying capacity
- 06
Quiet, stable operation
- 07
Hygienic design standards suitable for food and pharma
- 08
Space-optimizing L-shaped layout
- 09
Extended service life
- 10
Bi-directional operation
- 11
Variable or fixed speed options
- 12
Highly customizable configuration (length, height, motor position, mounting)
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 1-50 meters (customizable)
- Width
- 65 / 85 / 105 mm
- Height
- 700-900 mm (customizable)
- Materials
- Stainless Steel 304 or Aluminum
- Surface Finish
- Hard Anodized, Matt, or Bead Blast
- Belt Type
- Modular Belt
- Speed
- 5-40 m/min (variable or fixed)
- Motor Position
- Right or Left
- Power Supply
- Single Phase or 3 Phase, 50 Hz
- Voltage
- 220V or 415V
- Drive Type
- Direct, Chain, or Belt Drive
- Direction
- Bi-Directional
- Mounting
- Foot Rest or Tripod
Where it runs
- Changing product flow direction around 90-degree bends without manual transfer
- Space-constrained layouts requiring directional changes
- Feeding materials to filling, labeling, or sealing machines
- Loading and unloading between conveyor lines
- Automated assembly lines and sorting systems
- Handling boxes, food grains, vaccine bottles, tablets/capsules, biscuits, blister packs, and trays
- Food and Beverages
- Pharmaceuticals
- Automotive
- Plastics
- Packaging
- Electronics
- Cosmetics
- Manufacturing
- E-commerce
- Warehousing
- Airports
- Waste Management
