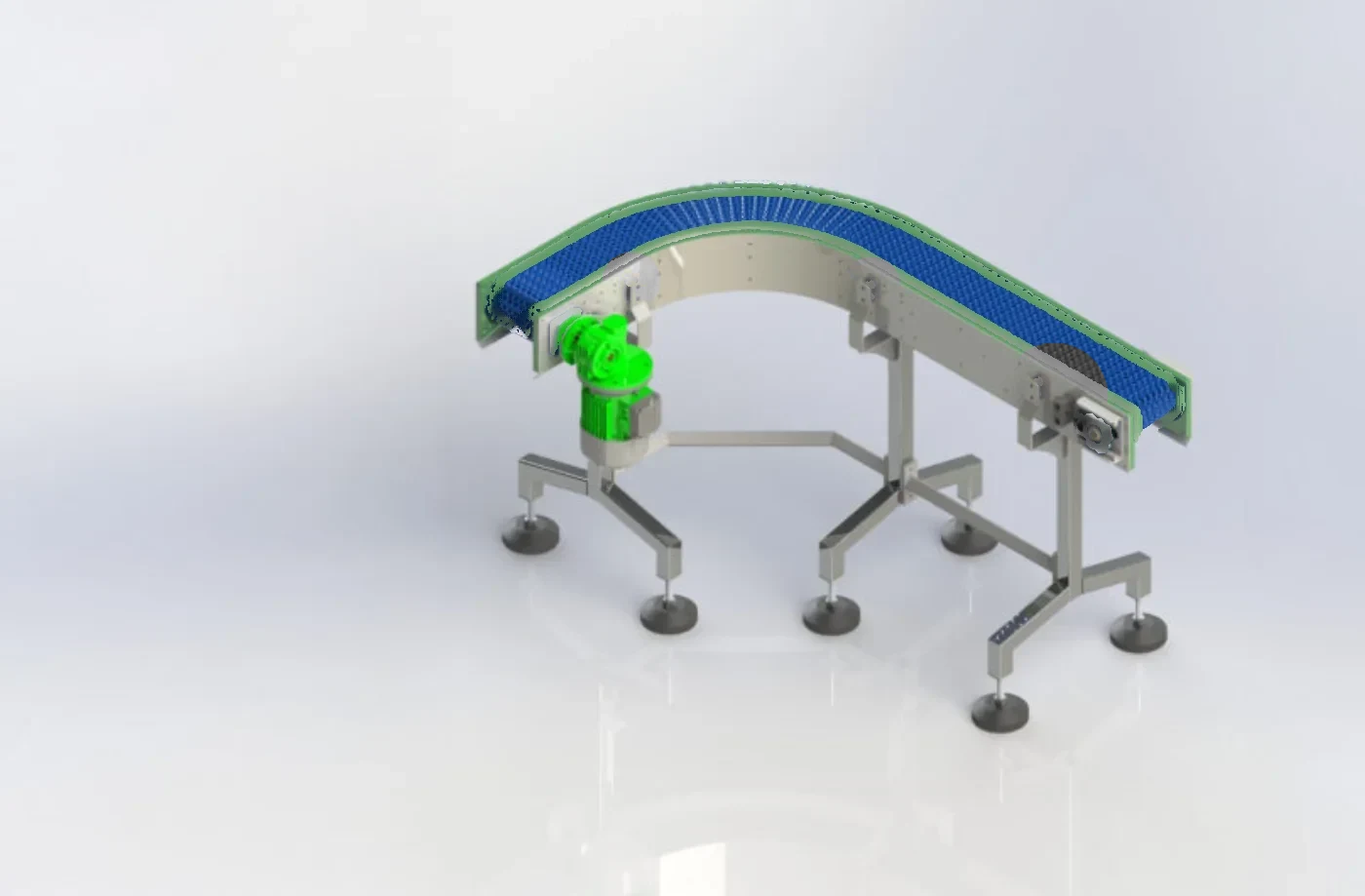

The Radius Modular Conveyor is a curved conveying system designed to transport products smoothly around corners or obstacles within production lines. It uses an interlocking modular plastic belt that maintains product orientation and stability while navigating curves (45°, 90°, and 180° turns), enabling directional changes without compromising efficiency or hygiene. It is widely used in food processing, packaging, pharmaceutical, and manufacturing environments where continuous flow around bends is required.
What is built into it
- 01
Modular, interlocking belt design with easy-to-replace sections
- 02
Configurable for curves, inclines, and declines
- 03
Auto belt alignment via sprocket engagement
- 04
Continuous movement through turns (45°, 90°, 180°)
- 05
Long service life and durable construction
- 06
Hygienic and easy to clean
- 07
Minimal slippage and alignment issues
- 08
Lightweight structure
- 09
Multiple belt options: flat top, perforated, cleated, friction top, radius/curved
- 10
Bi-directional operation with flexible motor positioning (right, left, or center)
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 0.5-10 meters (customizable)
- Width
- 65-1200 mm
- Height
- 700-900 mm (customizable)
- Material of Construction
- SS 304, MS, or Aluminium
- Surface Finish
- SS Matt Finish/Bead Blast; MS Painting & Powder Coating
- Belt Options
- Flat top, perforated, cleated, friction top, radius/curved
- Speed
- 5-30 m/min
- Motor Position
- Right, Left, or Center
- Voltage
- 220 V or 415 V
- Drive Type
- Direct, Chain, or Belt Drive
- Direction
- Bi-Directional
- Support
- Levelling Pads or Wheels
Where it runs
- Moving medicines, bottles, or blister packs through cleanroom conditions
- Curved transport of cartons, pouches, or trays between machines
- Handling boxes, food grains, vaccines, tablets, capsules, and personal care items
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharma
- Warehousing
- Waste Management
