Z-Type Modular
Infeed, incline and discharge in one Z-profile lift.

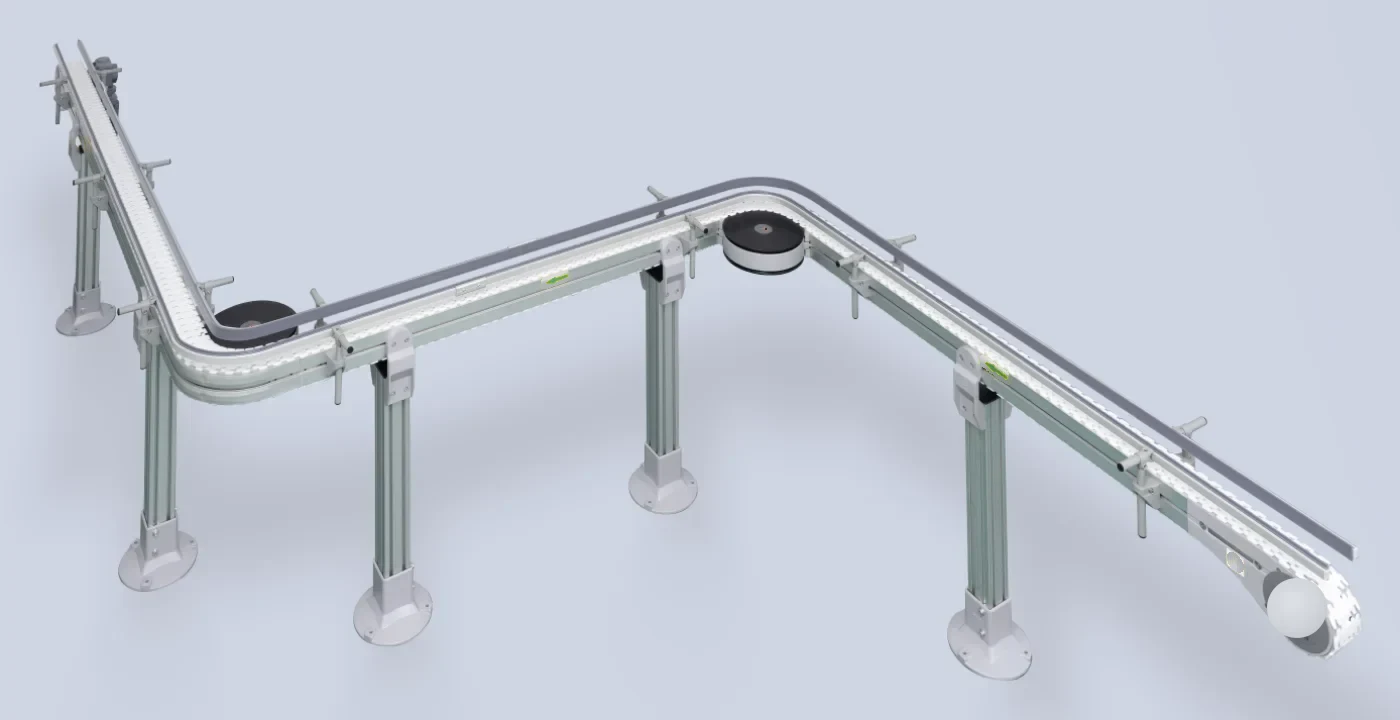

The Z Type Modular Conveyor by KFlexiTrack is a vertical/inclined material handling system specially designed to elevate or lower products between different levels within a facility. Its distinctive Z-shaped structure consists of two horizontal sections (an infeed and a discharge run) connected by an inclined section, allowing products to be raised or lowered efficiently while occupying minimal floor space. Built around a modular plastic belt on a stainless steel or aluminum frame, it is commonly used to feed downstream packaging machinery and to bridge height differences in automated production, sorting, and assembly lines.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-05
- Configuration Inclined transfer
- Construction Stainless steel 304 or aluminum
What is built into it
- 01
Z-shaped layout (two horizontal runs joined by an inclined section) to elevate or lower products between levels
- 02
Space-optimizing design that minimizes required floor area
- 03
Modular plastic belt for reliable, flexible product handling
- 04
Hygienic design approach suited to food and pharma environments
- 05
Low maintenance requirements and extended service life
- 06
Bi-directional operation capability
- 07
Highly customizable configuration (length, height, belt width, motor position, drive type)
- 08
Enhanced operational efficiency across a wide range of industries
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 1-50 meters (customizable)
- Belt width
- 65 mm, 85 mm, or 105 mm
- Height
- 700-900 mm (customizable)
- Material of construction
- Stainless steel 304 or aluminum
- Belt type
- Modular plastic belt
- Speed range
- 5-40 m/min (variable or fixed)
- Motor position
- Right or left orientation
- Power supply
- Single-phase or three-phase, 50 Hz
- Voltage
- 220V or 415V
- Drive type
- Direct, chain, or belt drive
- Direction
- Bi-directional
- Support
- Foot rest or tripod
Where it runs
- Transferring products between different height levels
- Feeding filling, labeling, and sealing machines
- Handling bottles, pouches, containers, components, and cartons
- Automated assembly and sorting systems
- Food and beverages
- Pharmaceuticals
- Cosmetics
- Automotive
- Electronics
- Manufacturing and packaging
- Warehousing and e-commerce
- Airports
