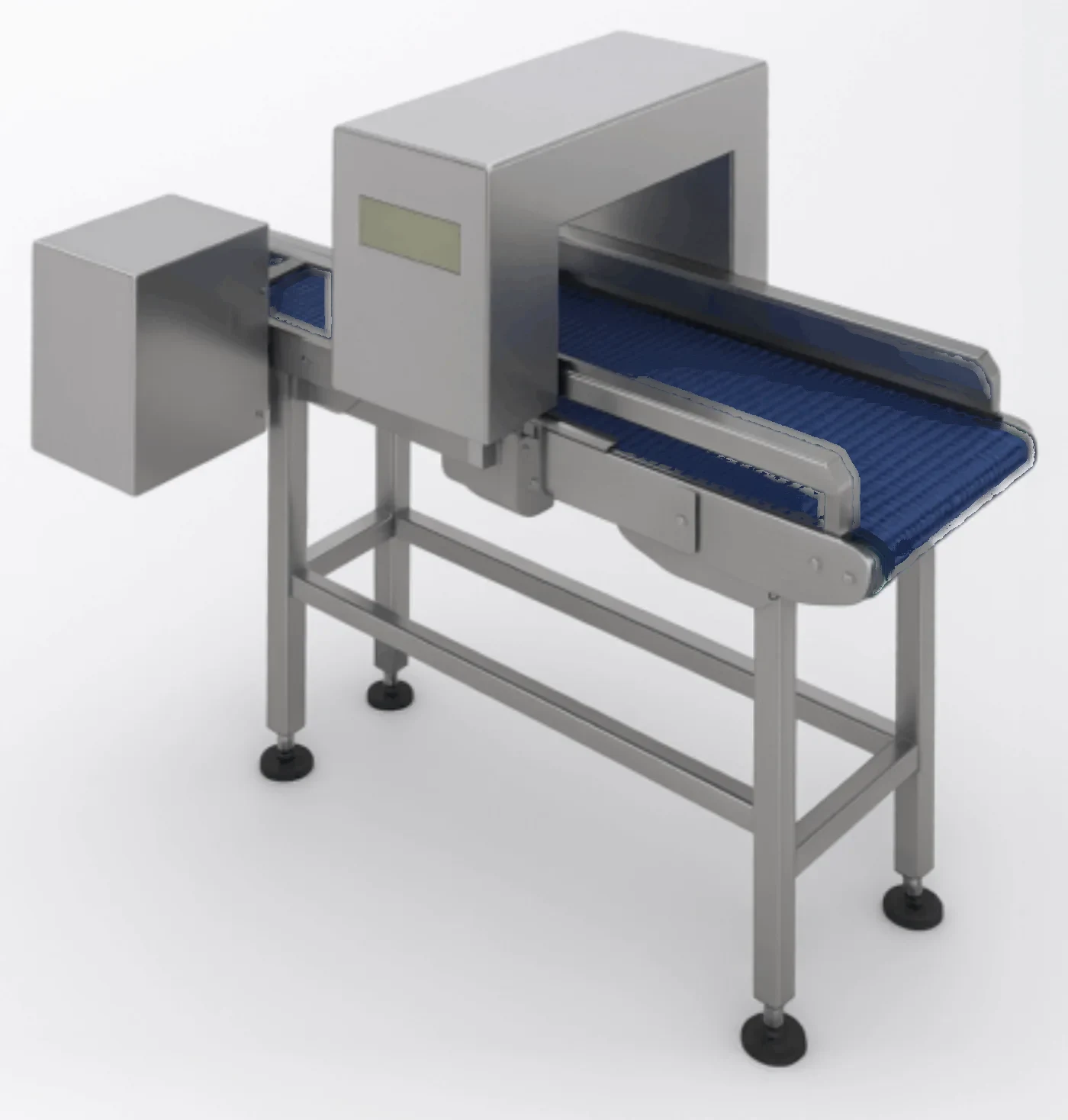

The Metal Detector Conveyor integrates advanced metal-detection technology with a motorized conveyor belt to automatically identify and reject metal contaminants during manufacturing or packaging. It detects ferrous, non-ferrous, and stainless steel fragments to ensure product safety and regulatory compliance while maintaining smooth, continuous material flow. Built with food-grade stainless steel construction, it integrates seamlessly into existing production lines for hygienic, reliable inspection.
What is built into it
- 01
High sensitivity detection across ferrous, non-ferrous, and stainless steel contaminants
- 02
Automatic reject/ejection mechanism for detected metal
- 03
Advanced signal processing and compensation capabilities
- 04
User interface and control system with data logging and traceability
- 05
Food-grade construction (SS 304 / 316) for hygienic environments
- 06
Seamless integration into existing production lines
- 07
Customizable length and height to suit line requirements
- 08
PU belt for smooth, clean product handling
Standard ranges
Read these as the envelope, not a fixed configuration. Length, width, height, finish and drive are set per application on the GA drawing.
- Length
- 800-2500 mm (customizable)
- Width
- 150-800 mm
- Height
- 700-900 mm (customizable)
- MOC
- SS 304 / 316
- Surface Finish
- Matt Finish / Bead Blast
- Belt Material
- PU
- Speed
- 5-45 m/min
- Detection - Ferrous
- 0.5-1.5 mm
- Detection - Non-Ferrous
- 1.0-1.6 mm
- Detection - Stainless Steel
- 1.5-2.5 mm
- Motor Position
- Right / Left
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt
- Direction
- Single
- Resting Support
- Levelling Pads / Wheel
Where it runs
- Food and Beverages
- Pharma
- Packaging
- Manufacturing
- Cosmetics
- Electronics
- Assembly Lines
- E-commerce
- Warehousing
- Waste Management
- Automobile
- Airports
